MTB010N06RJ3 - N-Channel MOSFET

Features

  • Low On Resistance.
  • Simple Drive Requirement.
  • Low Gate Charge.
  • Fast Switching Characteristic.
  • Pb-free lead plating and halogen-free package BVDSS ID@VGS=10V, TC=25°C RDS(ON)@VGS=10V, ID=20A RDS(ON)@VGS=4.5V, ID=20A 60V 43A 10.3 mΩ(typ) 15.8 mΩ(typ) Symbol MTB010N06RJ3 Outline TO-252(DPAK) G：Gate D：Drain S：Source G DS Ordering Information Device MTB010N06RJ3-0-T3-G Package TO-252 (Pb-free lead plating & Halogen-free package) Shipping 2500 pc.

📥 Download Datasheet

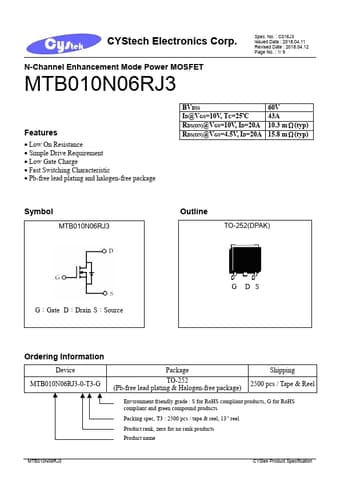

Datasheet preview – MTB010N06RJ3

Datasheet Details

Part number MTB010N06RJ3
Manufacturer CYStech
File Size 425.57 KB
Description N-Channel MOSFET
Datasheet download datasheet MTB010N06RJ3 Datasheet
Additional preview pages of the MTB010N06RJ3 datasheet.

📁 Similar Datasheet

  • MTB010N06I3 - N-Channel Enhancement Mode Power MOSFET (CYStech Electronics)
  • MTB011 - High Output Interface Driver ICs (Shindengen Electric)
  • MTB011N10RQ8 - N-Channel Enhancement Mode Power MOSFET (Cystech Electonics)
  • MTB012N04J3 - N-Channel Enhancement Mode Power MOSFET (Cystech Electonics)
  • MTB012N04Q8 - N-Channel Enhancement Mode Power MOSFET (Cystech Electonics)
  • MTB012N10RQ8 - N-Channel Enhancement Mode Power MOSFET (Cystech Electonics)
  • MTB013N10RE3 - N-Channel Enhancement Mode Power MOSFET (Cystech Electonics)
  • MTB013N10RH8 - N-Channel Enhancement Mode Power MOSFET (CYStech Electronics)
  • MTB013N10RJ3 - N-Channel Enhancement Mode Power MOSFET (Cystech Electonics)
  • MTB013N10RQ8 - N-Channel Enhancement Mode Power MOSFET (CYStech Electronics)
Other Datasheets by CYStech

Full PDF Text Transcription

Click to expand full text
CYStech Electronics Corp. N-Channel Enhancement Mode Power MOSFET MTB010N06RJ3 Spec. No. : C016J3 Issued Date : 2018.04.11 Revised Date : 2018.04.12 Page No. : 1/ 9 Features • Low On Resistance • Simple Drive Requirement • Low Gate Charge • Fast Switching Characteristic • Pb-free lead plating and halogen-free package BVDSS ID@VGS=10V, TC=25°C RDS(ON)@VGS=10V, ID=20A RDS(ON)@VGS=4.5V, ID=20A 60V 43A 10.3 mΩ(typ) 15.
