PE8205A N-Channel Power MOSFET

PE8205A Description

N-Channel Enhancement Mode Power MOSFET .
The PE8205A uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

PE8205A Features

* VDS = 20V, ID = 6A RDS(ON) < 27mΩ @ VGS=4.5V RDS(ON) < 29mΩ @ VGS=3.8V RDS(ON) < 35mΩ @ VGS=2.5V Schematic diagram
* High Power and current handing capability
* Lead free product is acquired

📥 Download Datasheet

Preview of PE8205A PDF

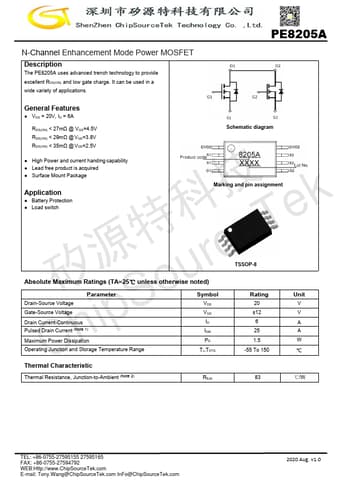

datasheet Preview Page 2 datasheet Preview Page 3
