CY7C2265XV18 Features
* Separate independent read and write data ports
* Supports concurrent transactions
* 633 MHz clock for high bandwidth
* Four-word burst for reducing address bus frequency
* Double Data Rate (DDR) interfaces on both read and write ports (data transferred at 1266 MHz) at 633 MHz

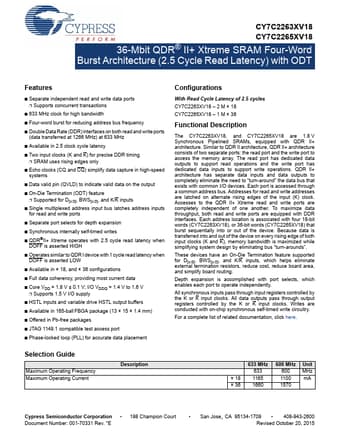

CY7C2263XV18-CypressSemiconductor.pdf
Datasheet Details
CY7C2265XV18, CY7C2263XV18
Cypress Semiconductor
1.07 MB
36-mbit qdr ii+ xtreme sram four-word burst architecture.
This datasheet PDF includes multiple part numbers: CY7C2265XV18, CY7C2263XV18.
Please refer to the document for exact specifications by model.
