* Low On-Resistance
* Very Low Gate Threshold Voltage
* Low Input Capacitance
* ESD Protected Gate
* Fast Switching Speed
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards fo

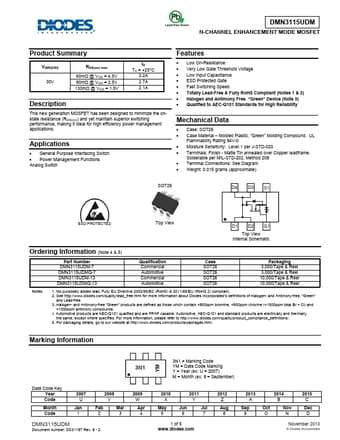

DMN3115UDM Datasheet (209.01 KB)
DMN3115UDM
209.01 KB
N-channel mosfet.
DMN3115UDM
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS 30V
RDS(on) max
60mΩ @ VGS = 4.5V 80mΩ @ VGS = 2.5V 130mΩ @ VGS = 1.5V
ID TA.
