DMN313DLT - N-Channel MOSFET

Diodes

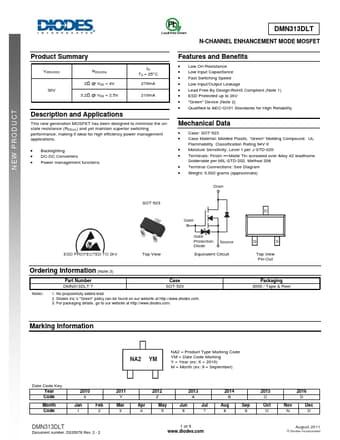

DMN313DLT Datasheet Preview — Preview of DMN313DLT PDF

Datasheet Details

Part number	DMN313DLT
Manufacturer	DIODES ↗
File Size	129.32 KB
Description	N-Channel MOSFET
Datasheet	DMN313DLT-Diodes.pdf

DMN313DLT Product details

Description

and Applications This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Backlighting DC-DC Converters Power management functions

Features

Low On-Resistance.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
Lead Free By Design/RoHS Compliant (Note 1).
ESD Protected up to 2kV.
"Green" Device (Note 2).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: SOT-523.
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level.
