DMN3135LVT

Dual N-Channel MOSFET

DMN3135LVT Features

* Low On-Resistance

* Low Input Capacitance

* Fast Switching Speed

* Low Input/Output Leakage

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* Qualified to AEC-Q101 standards for Hi

DMN3135LVT General Description

and Applications This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

* Backlighting

* DC-DC Converters

* Power management .

DMN3135LVT Datasheet (162.89 KB)

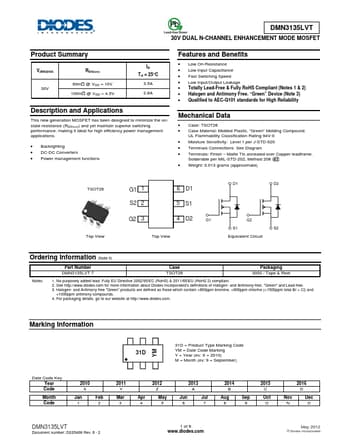

Preview of DMN3135LVT PDF

Datasheet Details

Part number:

DMN3135LVT

Manufacturer:

DIODES ↗

File Size:

162.89 KB

Description:

Dual n-channel mosfet.
ADVANCE INFORMATION DMN3135LVT 30V DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS 30V RDS(on) 60mΩ @ VGS = 10V 100mΩ @ VGS = 4.5V.
