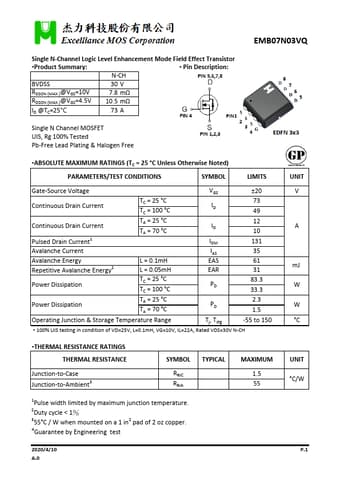

EMB07N03VQ
Excelliance MOS
442.47kb
Single n-channel logic level enhancement mode field effect transistor. N-CH BVDSS 30 V RDSON (MAX.)@VGS=10V RDSON (MAX.)@VGS=4.5V 7.8 mΩ 10.5 mΩ ID @TC=25℃ 73 A Single N Channel MOSFET UIS, Rg 10
