EMB07N04H Datasheet - Excelliance MOS

EMB07N04H MOSFET

N‐Channel Logic Level Enhancement Mode Field Effect Transistor Product Summary: BVDSS 40V D RDSON (MAX.) 7mΩ ID 55A G UIS, Rg 100% Tested S Pb‐Free Lead Plating & Halogen Free ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate‐Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy Repetitive Avalanche Energy2 L = 0.1mH, ID=50A, RG=25Ω L = 0.05mH Power Dissipation.

EMB07N04H Datasheet (207.05 KB)

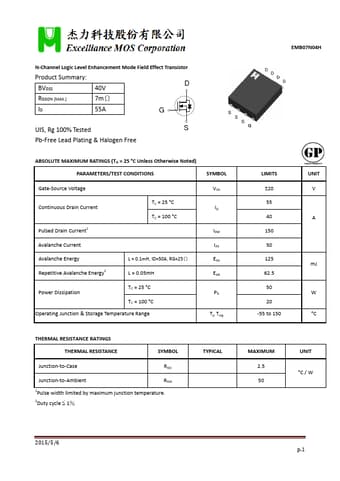

EMB07N04H Datasheet Preview — Preview of EMB07N04H PDF

Datasheet Details

Part number:

EMB07N04H

Manufacturer:

Excelliance MOS

File Size:

207.05 KB

Description:

Mosfet.
