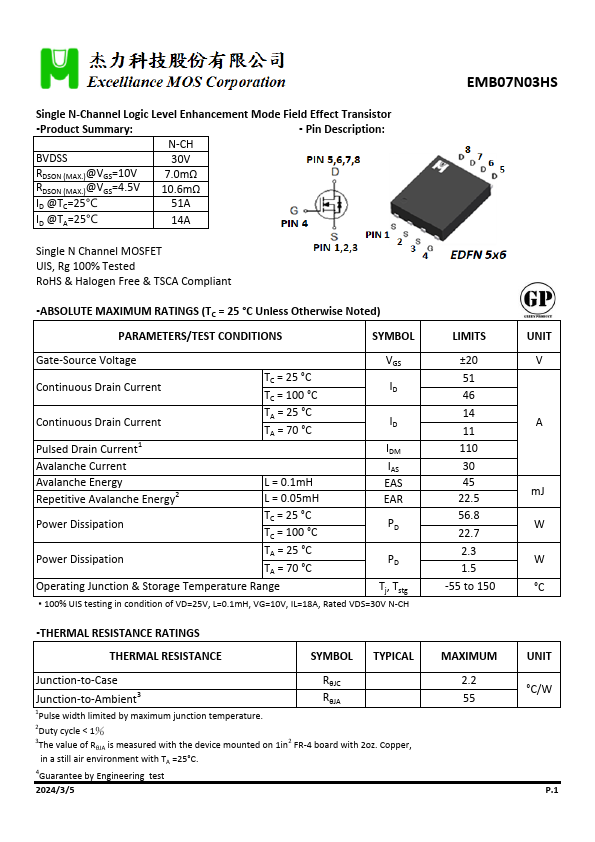

EMB07N03HS
Excelliance MOS
533.64kb
Single n-channel logic level enhancement mode field effect transistor. N-CH BVDSS 30V RDSON (MAX.)@VGS=10V RDSON (MAX.)@VGS=4.5V 7.0mΩ 10.6mΩ ID @TC=25℃ 51.0A ID @TA=25℃ 14.0A Single N Channel
