EMBA5N10CS Datasheet - Excelliance MOS

EMBA5N10CS MOSFET

N‐Channel Logic Level Enhancement Mode Field Effect Transistor Product Summary: BVDSS 100V D RDSON (MAX.) 150mΩ ID 10A G UIS, Rg 100% Tested S Pb‐Free Lead Plating & Halogen Free ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate‐Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy Repetitive Avalanche Energy2 L = 0.1mH, ID=12A, RG=25Ω L = 0.05mH Power Dissipat.

EMBA5N10CS Datasheet (225.04 KB)

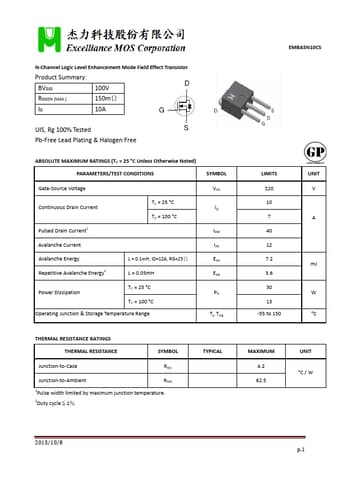

EMBA5N10CS Datasheet Preview — Preview of EMBA5N10CS PDF

Datasheet Details

Part number:

EMBA5N10CS

Manufacturer:

Excelliance MOS

File Size:

225.04 KB

Description:

Mosfet.
