EMBA5A10G MOSFET

Dual N‐Channel Logic Level Enhancement Mode Field Effect Transistor Product Summary: N‐CH BVDSS 100V RDSON (MAX.) 150mΩ ID 3A Pb‐Free Lead Plating & Halogen Free ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate‐Source Voltage Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 100 °C Power Dissipation TA = 25 °C TA = 100 °C Operating Junction & Storage Temperature Range VGS ID IDM PD Tj, Tstg EMBA5A10G LIMITS ±20 3.

EMBA5A10G-ExcellianceMOS.pdf

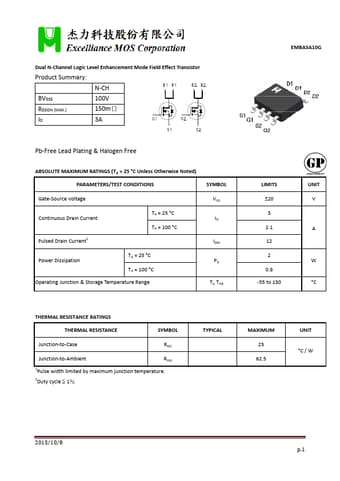

EMBA5A10G Datasheet Preview — Preview of EMBA5A10G PDF

Datasheet Details

Part number:

EMBA5A10G

Manufacturer:

Excelliance MOS

File Size:

190.31 KB

Description:

Mosfet.
