FDC642P

P-Channel MOSFET

FDC642P Features

* • • • • • -4 A, -20 V. RDS(ON) = 0.065 Ω @ VGS = -4.5 V RDS(ON) = 0.100 Ω @ VGS = -2.5 V Fast switching speed. Low gate charge (7.2nC typical). High performance trench technology for extremely low RDS(ON). SuperSOTTM-6 package: small footprint (72% smaller than standard SO-8); low profile (1mm thick

FDC642P General Description

This P-Channel 2.5V specified MOSFET is produced using Fairchild's advanced PowerTrench process that has been especially tailored to minimize on-state resistance and yet maintain low gate charge for superior switching performance. These devices have been designed to offer exceptional power dissipati.

FDC642P Datasheet (269.68 KB)

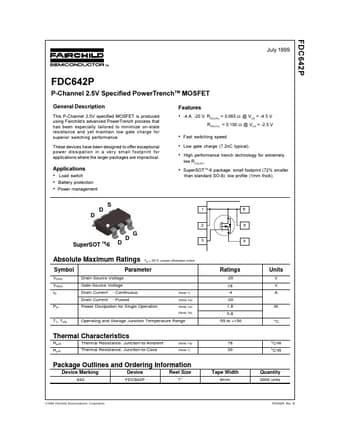

Preview of FDC642P PDF

Datasheet Details

Part number:

FDC642P

Manufacturer:

Fairchild Semiconductor

File Size:

269.68 KB

Description:

P-channel mosfet.
