FDC6401N Datasheet, Mosfet, ON Semiconductor

FDC6401N Features

• Mosfet
• 3.0 A, 20 V. RDS(ON) = 70 mW @ VGS = 4.5 V RDS(ON) = 95 mW @ VGS = 2.5 V
• Low Gate Charge (3.3 nC)
• High Performance Trench Technology for Extremely Low

PDF File Details

Part number:

FDC6401N

Manufacturer:

ON Semiconductor ↗

File Size:

327.88kb

Download:

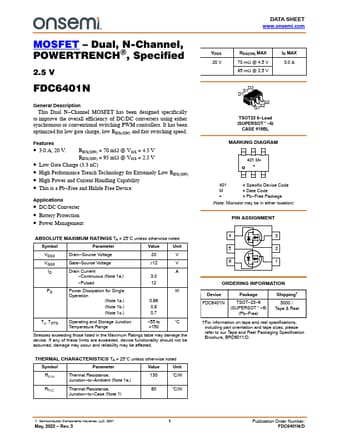

📄 Datasheet

Description:

Dual n-channel mosfet. This Dual N

Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either

FDC6401N Application

• Applications
• DC/DC Converter
• Battery Protection
• Power Management ABSOLUTE MAXIMUM RATINGS TA = 25°C unless otherwise
