FDC642P-F085P, FDC642P-F085 P-Channel MOSFET

ON Semiconductor

Description

MOSFET * P-Channel, POWERTRENCH) -20 V, -4 A, 100 mW FDC642P-F085, FDC642P-F085P .

📥 Download Datasheet

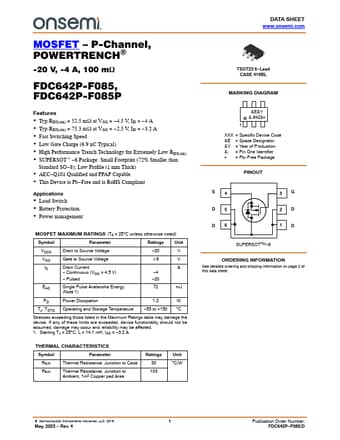

FDC642P-F085P Datasheet Preview — This datasheet PDF includes multiple part numbers: FDC642P-F085P, FDC642P-F085. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: FDC642P-F085P, FDC642P-F085
Manufacturer: ON Semiconductor ↗
File Size: 1.20 MB
Datasheet: FDC642P-F085-ONSemiconductor.pdf
Description: P-Channel MOSFET
Note: This datasheet PDF includes multiple part numbers: FDC642P-F085P, FDC642P-F085.
Please refer to the document for exact specifications by model.

Features

* Typ RDS(on) = 52.5 mW at VGS =
* 4.5 V, ID =
* 4 A
* Typ RDS(on) = 75.3 mW at VGS =
* 2.5 V, ID =
* 3.2 A
* Fast Switching Speed
* Low Gate Charge (6.9 nC Typical)
* High Performance Trench Technology for Extremely Low RDS(on)
* SUPERSOTt

Applications

* Load Switch
* Battery Protection
* Power management MOSFET MAXIMUM RATINGS (TA = 25C unless otherwise noted) Symbol Parameter Ratings Unit VDSS VGS ID Drain to Source Voltage Gate to Source Voltage Drain Current
* Continuous (VGS = 4.5 V)
* Pulsed
* 20 V
