FDMS3602AS Datasheet - Fairchild Semiconductor

FDMS3602AS - MOSFET

This device includes two specialized N-Channel MOSFETs in a dual PQFN package. The switch node has been internally connected to enable easy placement and routing of synchronous buck converters. The control MOSFET (Q1) and synchronous SyncFET (Q2) have been designed to provide optimal power efficienc.

FDMS3602AS Features

* Q1: N-Channel

* Max rDS(on) = 5.6 mΩ at VGS = 10 V, ID = 15 A

* Max rDS(on) = 8.5 mΩ at VGS = 4.5 V, ID = 14 A Q2: N-Channel

* Max rDS(on) = 2.2 mΩ at VGS = 10 V, ID = 26 A

* Max rDS(on) = 3.4 mΩ at VGS = 4.5 V, ID = 22 A

* Low inductance packaging shortens ri

FDMS3602AS-FairchildSemiconductor.pdf

Preview of FDMS3602AS PDF

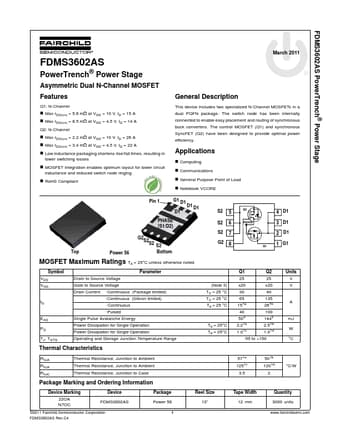

FDMS3602AS Datasheet Preview Page 2 FDMS3602AS Datasheet Preview Page 3

Datasheet Details

Part number:

FDMS3602AS

Manufacturer:

Fairchild Semiconductor

File Size:

510.96 KB

Description:

Mosfet.
