FDS6982, Dual N-Channel/ Notebook Power Supply MOSFET

FDS6982 June 1999 FDS6982 Dual N-Channel, Notebook Power Supply MOSFET General .
This part is designed to replace two single SO-8 MOSFETs in synchronous DC:DC power supplies that provide the various peripheral voltage rails require.

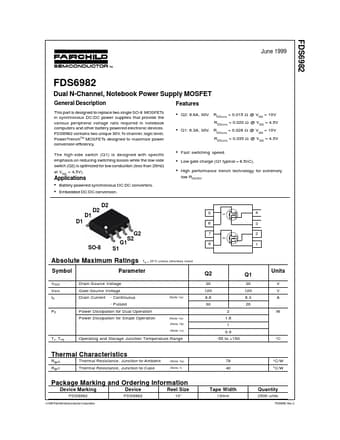

datasheet Preview Page 1 from Datasheet4u.com

FDS6982_FairchildSemiconductor.pdf

FDS6982 Datasheet Preview — Preview of FDS6982 PDF

Datasheet Details

Part number:

FDS6982

Manufacturer:

Fairchild Semiconductor

File Size:

238.96 KB

Description:

Dual N-Channel/ Notebook Power Supply MOSFET

Features

* Q2: 8.6A, 30V. RDS(on) = 0.015 Ω @ VGS = 10V RDS(on) = 0.020 Ω @ VGS = 4.5V Q1: 6.3A, 30V. RDS(on) = 0.028 Ω @ VGS = 10V RDS(on) = 0.035 Ω @ VGS = 4.5V
* Fast switching speed. Low gate charge (Q1 typical = 8.5nC). High performance trench technology f

Applications

* Battery powered synchronous DC:DC converters.
* Embedded DC:DC conversion. D2 D2 D1 D1 G2 S2 5 6 7 Q1 4 3 2 Q2 SO-8 G1 S1 8 1 Absolute Maximum Ratings Symbol V DSS V GSS ID PD T A = 25°C unless otherwise noted Parameter Drain-Source Voltage Gate-Source Voltage Drain Curr
