FDS6982AS Dual Notebook Power Supply N-Channel PowerTrench SyncFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

FDS6982AS December 2006 FDS6982AS General .
tm Dual Notebook Power Supply N-Channel PowerTrench® SyncFET™ Features. Q2: Optimized to minimize conduction losses Includes SyncFET Schott.

📥 Download Datasheet

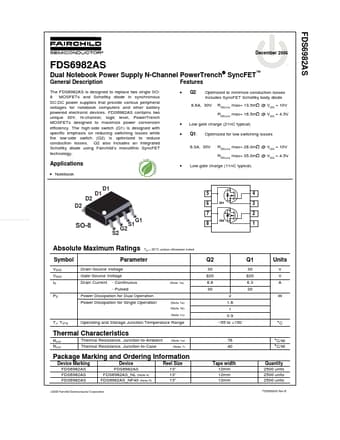

Preview of FDS6982AS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
FDS6982AS
Manufacturer
Fairchild Semiconductor
File Size
276.52 KB
Datasheet
FDS6982AS_FairchildSemiconductor.pdf
Description
Dual Notebook Power Supply N-Channel PowerTrench SyncFET

Features

* Q2: Optimized to minimize conduction losses Includes SyncFET Schottky body diode RDS(on) max= 13.5mΩ @ VGS = 10V RDS(on) max= 16.5mΩ @ VGS = 4.5V
* Low gate charge (21nC typical) Q1: Optimized for low switching losses RDS(on) max= 28.0mΩ @ VGS = 10V RDS(on) max= 35.0mΩ @

Applications

* Notebook D1 D1 D2 D2 www. DataSheet4U. com 5 6 7 Q1 4 3 2 Q2 SO-8 S2 G2 S1 G1 8 1 Absolute Maximum Ratings Symbol VDSS VGSS ID PD Drain-Source Voltage Gate-Source Voltage Drain Current TA = 25°C unless otherwise noted Parameter Q2 30 (Note 1a) Q1 30 ±20 6.3 20 2 1.6 1 0.9
