FDS6986S Datasheet - Fairchild Semiconductor

Dual Notebook Power Supply N-Channel PowerTrench SyncFET

FDS6986S Features

* Q2: Optimized to minimize conduction losses Includes SyncFET Schottky body diode RDS(on) = 20 mΩ @ VGS = 10V RDS(on) = 28 mΩ @ VGS = 4.5V

* Q1: Optimized for low switching losses Low gate charge (6.5 nC typical) RDS(on) = 29 mΩ @ VGS = 10V RDS(on) = 38 mΩ @ VGS = 4.5V 7.9A, 30V 6

FDS6986S General Description

The FDS6986S is designed to replace two single SO-8 MOSFETs and Schottky diode in synchronous DC:DC power supplies that provide various peripheral voltages for notebook computers and other battery powered electronic devices. FDS6986S contains two unique 30V, N-channel, logic level, PowerTrench MOSFE.

FDS6986S Datasheet (200.18 KB)

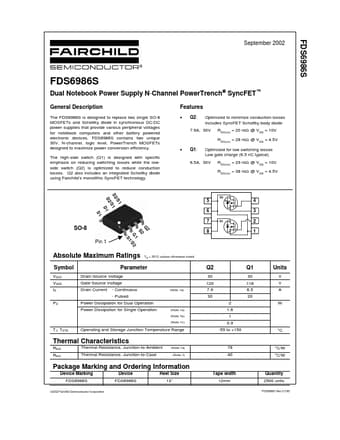

FDS6986S Datasheet Preview — Preview of FDS6986S PDF

Datasheet Details

Part number:

FDS6986S

Manufacturer:

Fairchild Semiconductor

File Size:

200.18 KB

Description:

Dual notebook power supply n-channel powertrench syncfet.
