FDS6984AS Datasheet - Fairchild Semiconductor

FDS6984AS, Dual Notebook Power Supply N-Channel PowerTrench SyncFET

FDS6984AS J May 2008 FDS6984AS General .
Dual Notebook Power Supply N-Channel PowerTrench® SyncFET™ Features. Q2: Optimized to minimize conduction losses Includes SyncFET Schottky d.

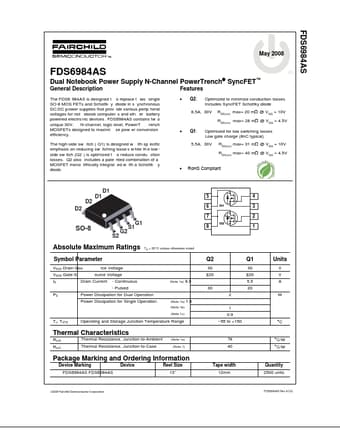

datasheet Preview Page 1 from Datasheet4u.com

FDS6984AS-FairchildSemiconductor.pdf

FDS6984AS Datasheet Preview — Preview of FDS6984AS PDF

Datasheet Details

Part number:

FDS6984AS

Manufacturer:

Fairchild Semiconductor

File Size:

467.89 KB

Description:

Dual Notebook Power Supply N-Channel PowerTrench SyncFET

Features

* Q2: Optimized to minimize conduction losses Includes SyncFET Schottky diode RDS(on) max= 20 mΩ @ VGS = 10V RDS(on) max= 28 mΩ @ VGS = 4.5V
* Q1: Optimized for low switching losses Low gate charge (8nC typical) RDS(on) max= 31 mΩ @ VGS = 10V RDS(on) max= 40 mΩ @ VGS = 4.5V
