HUF76131SK8 Datasheet - Fairchild Semiconductor

HUF76131SK8, N-Channel MOSFET

HUF76131SK8 Data Sheet January 2003 10A, 30V, 0.013 Ohm, N-Channel, Logic Level UltraFET Power MOSFET This N-Channel power MOSFET is ® manufactured u.

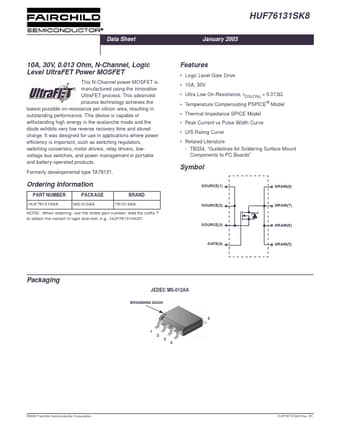

datasheet Preview Page 1 from Datasheet4u.com

HUF76131SK8_FairchildSemiconductor.pdf

Preview of HUF76131SK8 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

HUF76131SK8

Manufacturer:

Fairchild Semiconductor

File Size:

309.71 KB

Description:

N-Channel MOSFET

Features

* Logic Level Gate Drive
* 10A, 30V
* Ultra Low On-Resistance, rDS(ON) = 0.013Ω
* Temperature Compensating PSPICE® Model
* Thermal Impedance SPICE Model
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* Related Literature - TB334
