HUF76132S3S - N-Channel MOSFET

Fairchild Semiconductor

📥 Download Datasheet

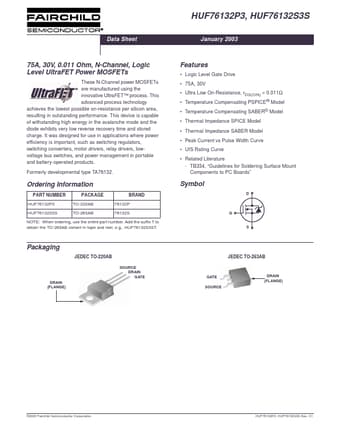

HUF76132S3S Datasheet Preview — Preview of HUF76132S3S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HUF76132S3S
Manufacturer: Fairchild Semiconductor
File Size: 287.03 KB
Datasheet: HUF76132S3S_FairchildSemiconductor.pdf
Description: N-Channel MOSFET

HUF76132S3S Product details

Features

Logic Level Gate Drive.
75A, 30V.
Ultra Low On-Resistance, rDS(ON) = 0.011Ω.
Temperature Compensating PSPICE® Model.
Temperature Compensating SABER© Model.
Thermal Impedance SPICE Model.
Thermal Impedance SABER Model.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Related Literature - TB334, “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER HUF76132P3.
