HUF76132SK8 - N-Channel MOSFET

Fairchild Semiconductor

📥 Download Datasheet

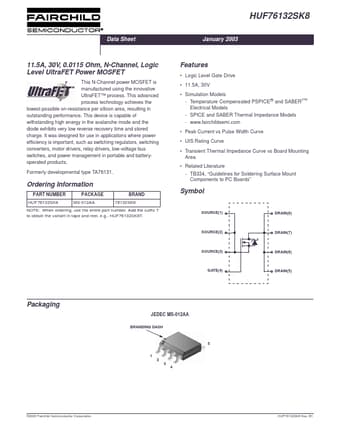

HUF76132SK8 Datasheet Preview — Preview of HUF76132SK8 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HUF76132SK8
Manufacturer: Fairchild Semiconductor
File Size: 334.36 KB
Datasheet: HUF76132SK8_FairchildSemiconductor.pdf
Description: N-Channel MOSFET

HUF76132SK8 Product details

Features

Logic Level Gate Drive.
11.5A, 30V.
Simulation Models - Temperature Compensated PSPICE® and SABER³™ Electrical Models - SPICE and SABER Thermal Impedance Models - www. fairchildsemi. com.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Transient Thermal Impedance Curve vs Board Mounting Area.
Related Literature - TB334, “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER HUF76132SK8.
