ISL9V5036P3

N-Channel Ignition IGBT

ISL9V5036P3 Features

* Industry Standard D2-Pak package

* SCIS Energy = 500mJ at TJ = 25oC

* Logic Level Gate Drive

* Qualified to AEC Q101

* RoHS Compliant Package JEDEC TO-263AB D²-Pak G E Symbol JEDEC TO-220AB JEDEC TO-262AA

ISL9V5036P3 General Description

The ISL9V5036S3S, ISL9V5036P3, and ISL9V5036S3 are the next generation IGBTs that offer outstanding SCIS capability in the D²Pak (TO-263) and TO-220 plastic package. These devices are intended for use in automotive ignition circuits, specifically as coil drivers. Internal diodes provide voltage clam.

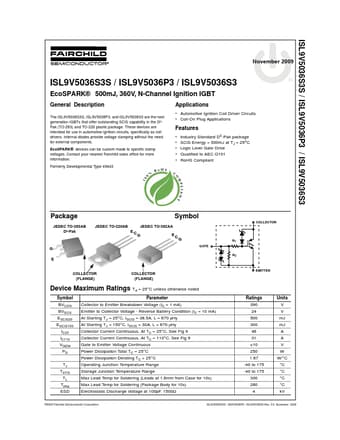

ISL9V5036P3 Datasheet (344.52 KB)

Preview of ISL9V5036P3 PDF

Datasheet Details

Part number:

ISL9V5036P3

Manufacturer:

Fairchild Semiconductor

File Size:

344.52 KB

Description:

N-channel ignition igbt.
ISL9V5036S3S / ISL9V5036P3 / ISL9V5036S3 November 2009 ISL9V5036S3S / ISL9V5036P3 / ISL9V5036S3 EcoSPARK® 500mJ, 360V, N-Channel Ignition IGBT Gene.
