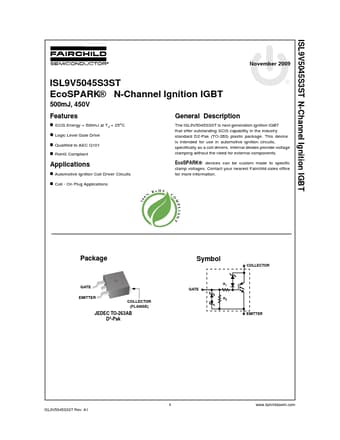

ISL9V5045S3ST Datasheet, igbt equivalent, Fairchild Semiconductor

ISL9V5045S3ST Features

• Igbt
• SCIS Energy = 500mJ at TJ = 25oC
• Logic Level Gate Drive
• Qualified to AEC Q101
• RoHS Compliant Applications
• Automotive Ignition Coil Driv

PDF File Details

Part number:

ISL9V5045S3ST

Manufacturer:

Fairchild Semiconductor

File Size:

327.64kb

Download:

📄 Datasheet

Description:

Ecospark n-channel ignition igbt. The ISL9V5045S3ST is next generation ignition IGBT that offer outstanding SCIS capability in the industry standard D2-Pak (TO-263) pl

ISL9V5045S3ST Application

• Applications
• Automotive Ignition Coil Driver Circuits
• Coil - On Plug Applications General Description The ISL9V5045S3ST is next
