ISL9V5036S3ST-F085C N-Channel IGBT

The ISL9V5036S3ST, ISL9V5036S3ST *F085C and ISL9V5036P3 *F085 are the next generation IGBTs that offer outstanding SCIS capability in the D2 *Pak (TO *263) and TO *220 plastic package. These devices are intended for use in automotive ignition circuits, specifically.

ISL9V5036S3ST-F085C Features

* Industry Standard D2

* Pak package

* SCIS Energy = 500 mJ at TJ = 25°C

* Logic Level Gate Drive

* AEC

* Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free and are RoHS Compliant Applications

* Automotive Ignition Coil Dri

ISL9V5036S3ST-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: ISL9V5036S3ST-F085C, ISL9V5036S3ST. Please refer to the document for exact specifications by model.

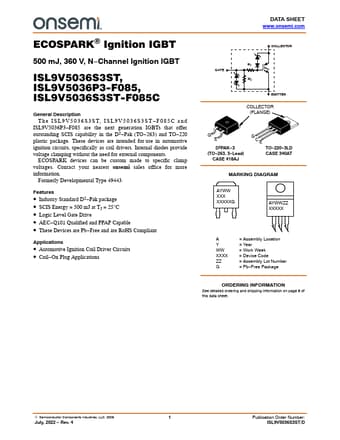

ISL9V5036S3ST-F085C Datasheet Preview Page 2 ISL9V5036S3ST-F085C Datasheet Preview Page 3
