ISL9V5036S3S - N-Channel Ignition IGBT

Fairchild Semiconductor

ISL9V5036S3S Description

ISL9V5036S3S / ISL9V5036P3 / ISL9V5036S3 November 2009 ISL9V5036S3S / ISL9V5036P3 / ISL9V5036S3 EcoSPARK® 500mJ, 360V, N-Channel Ignition IGBT Gene.
The ISL9V5036S3S, ISL9V5036P3, and ISL9V5036S3 are the next generation IGBTs that offer outstanding SCIS capability in the D²Pak (TO-263) and TO-220 p.

ISL9V5036S3S Features

* Industry Standard D2-Pak package
* SCIS Energy = 500mJ at TJ = 25oC
* Logic Level Gate Drive
* Qualified to AEC Q101
* RoHS Compliant Package JEDEC TO-263AB D²-Pak G E Symbol JEDEC TO-220AB JEDEC TO-262AA

ISL9V5036S3S Applications

* Automotive Ignition Coil Driver Circuits

📥 Download Datasheet

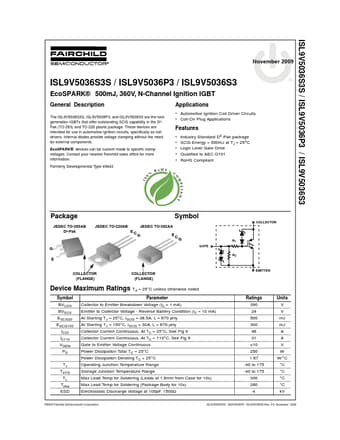

ISL9V5036S3S Datasheet Preview — Preview of ISL9V5036S3S PDF
