ISL9V5045S3ST-F085C - N-Channel IGBT

ISL9V5045S3ST-F085C Description

ECOSPARK) Ignition IGBT 500 mJ, 450 V, N-Channel Ignition IGBT ISL9V5045S3ST-F085C .

ISL9V5045S3ST-F085C Features

* SCIS Energy = 500 mJ at TJ = 25°C
* Logic Level Gate Drive
* AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb

ISL9V5045S3ST-F085C Applications

* Automotive Ignition Coil Driver Circuits
* High Current Ignition System
* Coil on Plug Applications MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Parameter Symbol Value Unit Collector to Emitter Breakdown Voltage BVCER 480 V (IC = 1 mA) Emitter to Collector Vo

📥 Download Datasheet

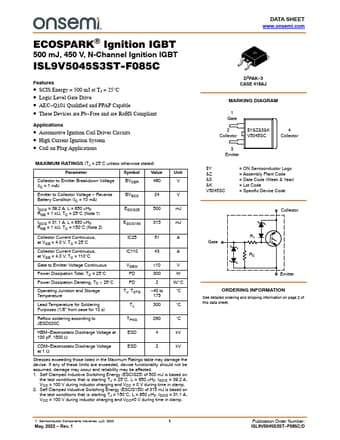

Preview of ISL9V5045S3ST-F085C PDF
