ISL9V5036S3ST, N-Channel IGBT

ECOSPARK) Ignition IGBT 500 mJ, 360 V, N *Channel Ignition IGBT ISL9V5036S3ST, ISL9V5036P3-F085, ISL9V5036S3ST-F085C General .
The ISL9V5036S3ST, ISL9V5036S3ST. F085C and ISL9V5036P3. F085 are the next generation IGBTs that offer outstanding SCIS capability in th.

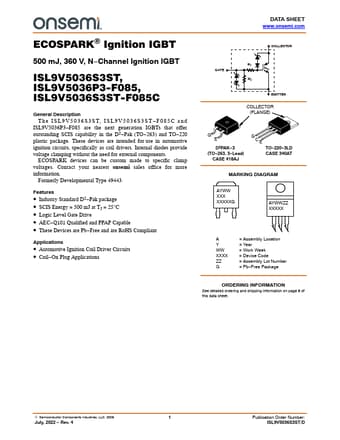

datasheet Preview Page 1 from Datasheet4u.com

ISL9V5036S3ST-ONSemiconductor.pdf

ISL9V5036S3ST Datasheet Preview — Preview of ISL9V5036S3ST PDF

Datasheet Details

Part number:

ISL9V5036S3ST

Manufacturer:

ON Semiconductor ↗

File Size:

365.06 KB

Description:

N-Channel IGBT

Features

* Industry Standard D2
* Pak package
* SCIS Energy = 500 mJ at TJ = 25°C
* Logic Level Gate Drive
* AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb

Applications

* Automotive Ignition Coil Driver Circuits
* Coil
* On Plug Applications GATE DATA SHEET www. onsemi. com COLLECTOR R1 R2 EMITTER COLLECTOR (FLANGE) G E D2PAK
* 3 (TO
* 263, 3
* Lead) CASE 418AJ G CE TO
* 220
* 3LD CASE 340AT MARKING DIAGRAM AY
