2N7002 N-Channel Power Mosfet

2N7002 Description

Production specification N-Channel Enhancement Mode Field Effect Transistor 2N7002 .

2N7002 Features

* High Density Cell Design For Low Pb RDS(ON). Lead-free
* Voltage Controlled Small Signal Switch.
* Rugged and Reliable.
* High Saturation Current Capability.

2N7002 Applications

* N-channel enhancement mode effect transistor.
* Switching application. SOT-23 ORDERING INFORMATION Type No. Marking 2N7002 7002 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VDSS VDGR VGSS ID PD RθJA Drain-Source voltage 60 D

📥 Download Datasheet

Preview of 2N7002 PDF

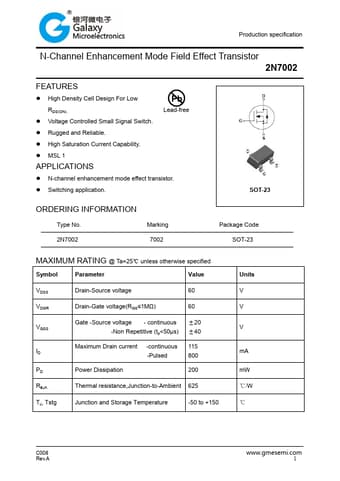

datasheet Preview Page 2 datasheet Preview Page 3
