GT105N10, GT105N10K Datasheet - GOFORD

GT105N10 N-Channel Enhancement Mode Power MOSFET

GT105N10 Features

* l VDS l ID (at VGS = 10V) l RDS(ON) (at VGS = 10V) l 100% Avalanche Tested l RoHS Compliant 100V 60A < 10.5mΩ Schematic diagram Application l Power switch l DC/DC converters Ordering Information Device GT105N10K Package TO-252 Marking GT105N10 Absolute Maximum Ratings TC = 25ºC, unless other

GT105N10K-GOFORD.pdf

This datasheet PDF includes multiple part numbers: GT105N10, GT105N10K. Please refer to the document for exact specifications by model.

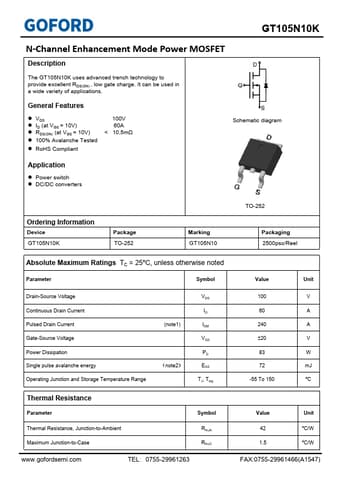

GT105N10 Datasheet Preview Page 2 GT105N10 Datasheet Preview Page 3

Datasheet Details

Part number:

GT105N10, GT105N10K

Manufacturer:

GOFORD

File Size:

658.08 KB

Description:

N-channel enhancement mode power mosfet.

Note:

This datasheet PDF includes multiple part numbers: GT105N10, GT105N10K.
Please refer to the document for exact specifications by model.
