GB01SLT12-220

Silicon Carbide Schottky Diode

GB01SLT12-220 Features

* 1200 V Schottky rectifier

* 175 °C maximum operating temperature

* Zero reverse recovery charge

* Positive temperature coefficient of VF

* Extremely fast switching speeds

* Temperature independent switching behavior

* Lowest figure of merit Q

GB01SLT12-220 Datasheet (380.39 KB)

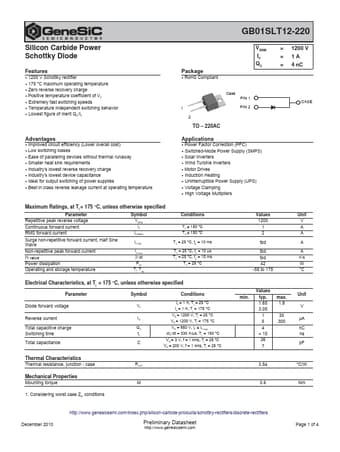

Preview of GB01SLT12-220 PDF

Datasheet Details

Part number:

GB01SLT12-220

Manufacturer:

GeneSiC

File Size:

380.39 KB

Description:

Silicon carbide schottky diode.
