GSM2309KP Datasheet, Mosfet, Globaltech

GSM2309KP Features

  • Mosfet
  • -30V, -3.8A, RDS(ON)=75mΩ@VGS=-10V
  • Fast switching
  • Suit for -4.5V Gate Drive Applications
  • G-S ESD Protection Diode Embedded
  • Green Device

PDF File Details

Part number:

GSM2309KP

Manufacturer:

Globaltech

File Size:

566.40kb

Download:

📄 Datasheet

Description:

P-channel mosfet. These P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been e

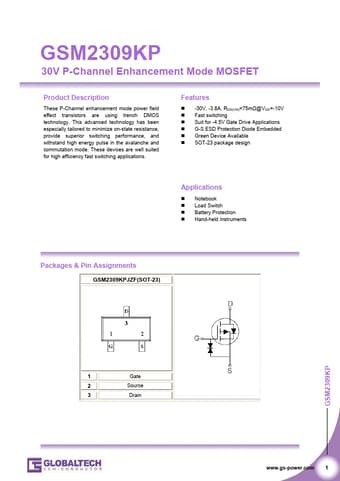

Datasheet Preview: GSM2309KP 📥 Download PDF (566.40kb)
Page 2 of GSM2309KP Page 3 of GSM2309KP

GSM2309KP Application

  • Applications Features
  • -30V, -3.8A, RDS(ON)=75mΩ@VGS=-10V
  • Fast switching
  • Suit for -4.5V Gate Drive Applications

TAGS

GSM2309KP
P-Channel
MOSFET
Globaltech
