HLB123T - NPN Transistor

This page provides the datasheet information for the HLB123T, a member of the HLB123T_Hi NPN Transistor family.

Datasheet Summary

Description

The HLB123T is designed for high voltage.

High speed switching inductive circuits and amplifier applications.

Features

  • High Speed Switching.
  • Low Saturation Voltage.
  • High Reliability TO-126 Absolute Maximum Ratings (TA=25°C).
  • Maximum Temperatures Storage Temperature -50 ~ +150 °C Junction Temperature +150 °C Maximum.
  • Maximum Power Dissipation Total Power Dissipation (TA=25°C) 3.5 W Total Power Dissipation (TC=25°C).

📥 Download Datasheet

Datasheet preview – HLB123T

Datasheet Details

Part number HLB123T
Manufacturer Hi-Sincerity Mocroelectronics
File Size 40.99 KB
Description NPN Transistor
Datasheet download datasheet HLB123T Datasheet
Additional preview pages of the HLB123T datasheet.

📁 Similar Datasheet

  • HLB123D - NPN Transistor (INCHANGE)
  • HLB121 - NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR (UTC)
  • HLB121A - NPN Triple Diffused Planar Type High Voltage Transistor (HI-SINCERITY)
  • HLB122 - NPN TRIPLE DIFFUSED PLANAR TYPE HIGH VOLTAGE TRANSISTOR (UTC)
  • HLB124 - NPN EPITAXIAL PLANAR TRANSISTOR (UTC)
  • HLB124E - NPN Transistor (INCHANGE)
  • HLB125HE - NPN Epitaxial Planar Transistor (Hi-Sincerity Microelectronics)
Other Datasheets by Hi-Sincerity Mocroelectronics
  • HLB123D - NPN Transistor
  • HLB123I - NPN Transistor
  • HLB123SA - NPN EPITAXIAL PLANAR TRANSISTOR
  • HLB120A - NPN Triple Diffused Planar Type High Voltage Transistors
  • HLB121I - NPN Triple Diffused Planar Type High Voltage Transistor
  • HLB121J - NPN Transistor
  • HLB122I - NPN Transistor
  • HLB122J - NPN Transistor

Full PDF Text Transcription

Click to expand full text

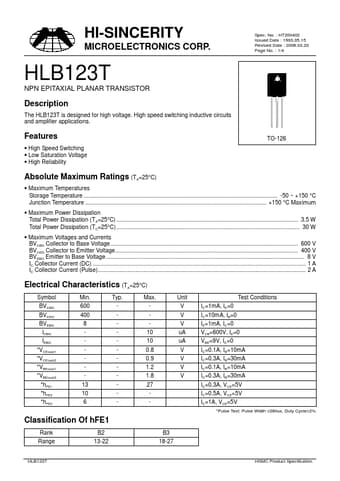

HI-SINCERITY MICROELECTRONICS CORP. Spec. No. : HT200402 Issued Date : 1993.05.15 Revised Date : 2006.02.20 Page No. : 1/4 HLB123T NPN EPITAXIAL PLANAR TRANSISTOR Description The HLB123T is designed for high voltage. High speed switching inductive circuits and amplifier applications. Features • High Speed Switching • Low Saturation Voltage • High Reliability TO-126 Absolute Maximum Ratings (TA=25°C) • Maximum Temperatures Storage Temperature ........................................................................................................................... -50 ~ +150 °C Junction Temperature ...................................................................................................................
