2SD1676 NPN Silicon Transistor

www.DataSheet4U.com 2SD1676 Silicon NPN with Internal Resistance Application Low frequency amplifier, Muting, Switching, Inverter Outline 2SD1676 Absolute Maximum Ratings (Ta = 25°C) Item Supply voltage Input voltage Output current Total power dissipation Operating temperature Storage temperature Symbol VCC VI IO PT TOP Tstg Ratings 20 ±10 600 300 25 to +110 55 to +150 Unit V V mA mW °C °C Electrical Characteristics (Ta = 25°C) Item Input on voltage Input off voltage Outpu.

2SD1676_HitachiSemiconductor.pdf

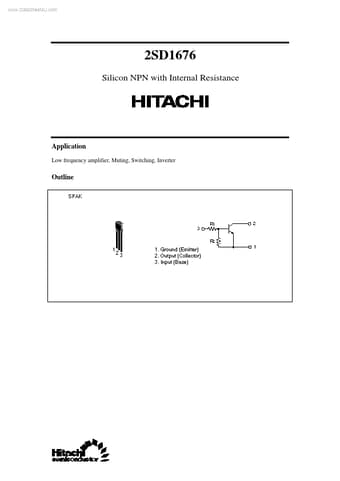

2SD1676 Datasheet Preview — Preview of 2SD1676 PDF

Datasheet Details

Part number:

2SD1676

Manufacturer:

Hitachi Semiconductor

File Size:

53.96 KB

Description:

Npn silicon transistor.
