HMC-VVD102 Datasheet, Attenuator, Hittite Microwave Corporation

HMC-VVD102 Features

  • Attenuator Low Insertion Loss: 1.5 dB Wide Dynamic Range: 18 dB High Input IP3: +17 dBm Single Control Voltage: -4 to +4V Die Size: 1.01 x 1.175 x 0.1 mm Typical Applications www.datasheet4u.com

PDF File Details

Part number:

HMC-VVD102

Manufacturer:

Hittite Microwave Corporation

File Size:

137.91kb

Download:

📄 Datasheet

Description:

Gaas pin mmic voltage-variable attenuator. The HMC-VVD102 is a monolithic GaAs PIN diode based Voltage Variable Attenuator (VVA) which exhibits low insertion loss, high IP3 and

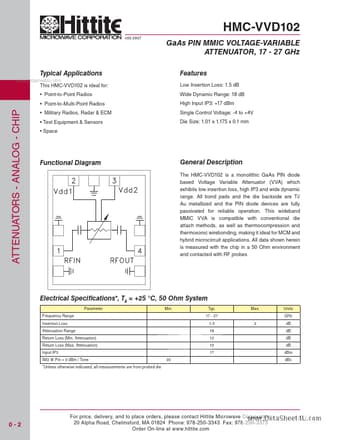

Datasheet Preview: HMC-VVD102 📥 Download PDF (137.91kb)
Page 2 of HMC-VVD102 Page 3 of HMC-VVD102

HMC-VVD102 Application

  • Applications www.datasheet4u.com This HMC-VVD102 is ideal for:
  • Point-to-Point Radios
  • Point-to-Multi-Point Radios ATTENUATORS -

TAGS

HMC-VVD102
GaAs
PIN
MMIC
VOLTAGE-VARIABLE
ATTENUATOR
Hittite Microwave Corporation
