iC-MB4, iC-MB4-IC - BiSS INTERFACE MASTER

iC-MB4 Description

iC-MB4 BiSS INTERFACE MASTER preliminary Rev C1, Page 1/42 .
iC-MB4 is a single-chip BiSS/SSI interface master controller featuring an 8-bit bus interface to industrial standard microcontroller.

iC-MB4 Features

* Bidirectional BiSS communication with up to 8 slaves
* Supports SSI protocol for unidirectional data transmission
* Synchronous sensor data acquisition with cyclic transfer at data rates of up to 10 Mbit/s
* Configurable interface with TTL, CMOS, RS422 or LVDS

iC-MB4 Applications

* Bidirectional communication in multi sensor systems
* Linear and rotary encoders
* Motor feedback systems
* PLC systems

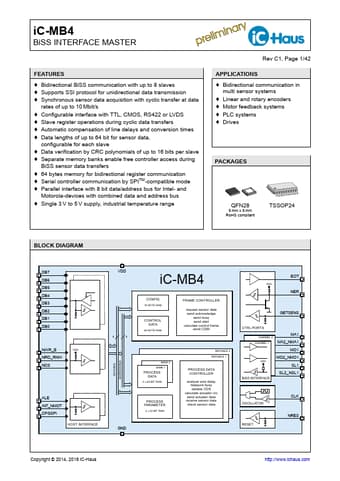

* Drives PACKAGES QFN28 5 mm x 5 mm RoHS compliant TSSOP24 BLOCK DIAGRAM DB5 DB_ DB7 DBf DBh DBv DB3 DBx NWR_E VDD NRD_RNW NCS AL

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: iC-MB4, iC-MB4-IC. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
iC-MB4, iC-MB4-IC
Manufacturer
IC-Haus
File Size
1.24 MB
Datasheet
iC-MB4-IC-Haus.pdf
Description
BiSS INTERFACE MASTER
Note
This datasheet PDF includes multiple part numbers: iC-MB4, iC-MB4-IC.
Please refer to the document for exact specifications by model.
