IN74ACT153 Datasheet - IK Semiconductor

IN74ACT153 Dual 4-1 Data Selector/Multiplexer

TECHNICAL DATA IN74ACT153 Dual 4-Input Data Selector/Multiplexer High-Speed Silicon-Gate CMOS The IN74ACT153 is identical in pinout to the LS/ALS153, HC/HCT153. The IN74ACT153 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. The Address Inputs select one of four Data Inputs from each multiplexer. Each multiplexer has an active-low Strobe control and a noninverting output. TTL/NMOS Compatible Input Levels Outputs Directly Interf.

IN74ACT153_IKSemiconductor.pdf

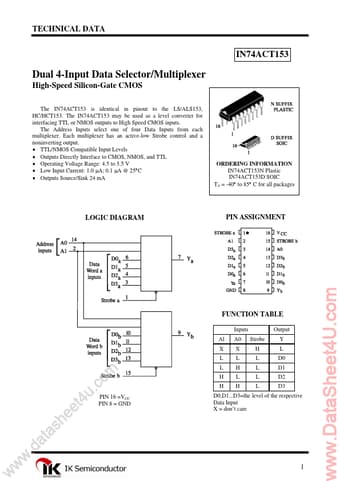

Preview of IN74ACT153 PDF
IN74ACT153 Datasheet Preview Page 2 IN74ACT153 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74ACT153

Manufacturer:

IK Semiconductor

File Size:

316.96 KB

Description:

Dual 4-1 data selector/multiplexer.
