IN74ACT157 Datasheet - IK Semiconductor

IN74ACT157 Quad 2-1 Data Selector/Multiplexer

TECHNICAL DATA IN74ACT157 Quad 2-Input Data Selector/Multiplexer High-Speed Silicon-Gate CMOS The IN74ACT157 is identical in pinout to the LS/ALS157, HC/HCT157. The IN74ACT157 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. This device routes 2 nibbles (A or B) to a single port (Y) as determined by the Select input. The data is presented at the outputs in noninvertered form. A high level on the Output Enable input sets all four Y outputs to a low.

IN74ACT157_IKSemiconductor.pdf

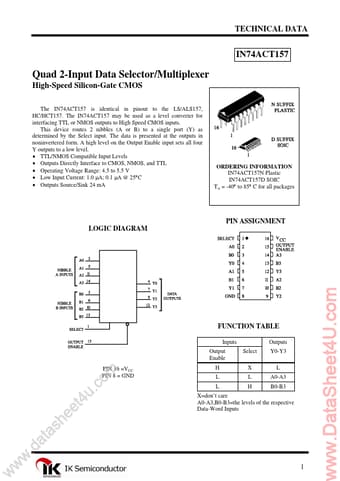

Preview of IN74ACT157 PDF
IN74ACT157 Datasheet Preview Page 2 IN74ACT157 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74ACT157

Manufacturer:

IK Semiconductor

File Size:

283.14 KB

Description:

Quad 2-1 data selector/multiplexer.
