IN74ACT151 Datasheet - IK Semiconductor

IN74ACT151 8-1 Data Selector/Multiplexer

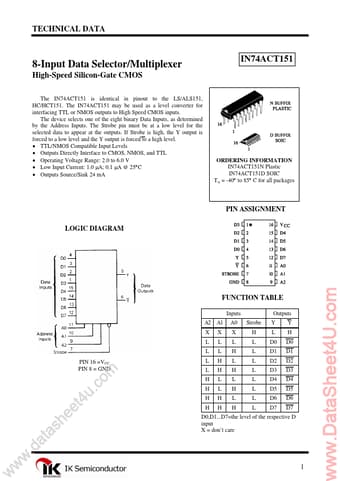

TECHNICAL DATA 8-Input Data Selector/Multiplexer High-Speed Silicon-Gate CMOS The IN74ACT151 is identical in pinout to the LS/ALS151, HC/HCT151. The IN74ACT151 may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. The device selects one of the eight binary Data Inputs, as determined by the Address Inputs. The Strobe pin must be at a low level for the selected data to appear at the outputs. If Strobe is high, the Y output is forced to a low level and the.

IN74ACT151_IKSemiconductor.pdf

Preview of IN74ACT151 PDF
IN74ACT151 Datasheet Preview Page 2 IN74ACT151 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74ACT151

Manufacturer:

IK Semiconductor

File Size:

287.89 KB

Description:

8-1 data selector/multiplexer.
