2SC5244 - Silicon NPN Power Transistor

2SC5244 Description

isc Silicon NPN Power Transistor .
High breakdown voltage, and high reliability. Wide area of safe operation. High-speed switching. Minimum Lot-to-Lot variations for ro.

2SC5244 Applications

* Designed for horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 20 A ICM Collector Cur

📥 Download Datasheet

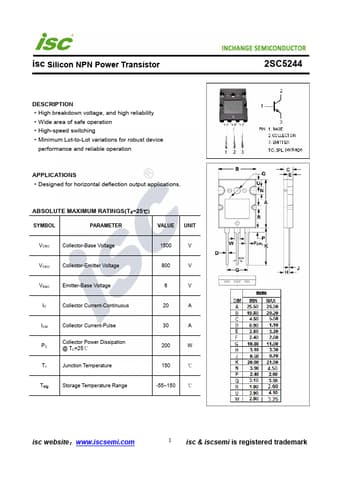

Preview of 2SC5244 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC5244
Manufacturer
INCHANGE
File Size
213.58 KB
Datasheet
2SC5244-INCHANGE.pdf
Description
Silicon NPN Power Transistor
