2SD1650 - NPN Transistor

2SD1650 Description

isc Silicon NPN Power Transistor .
High Breakdown Voltage- : VCBO= 1500V (Min). High Switching Speed. High Reliability. Built-in Damper Diode. Minimum Lot-to-Lot va.

2SD1650 Applications

* Designed for horizontal output applicaitions ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current- Continuous 3.5 A ICP Collector Current-Pea

📥 Download Datasheet

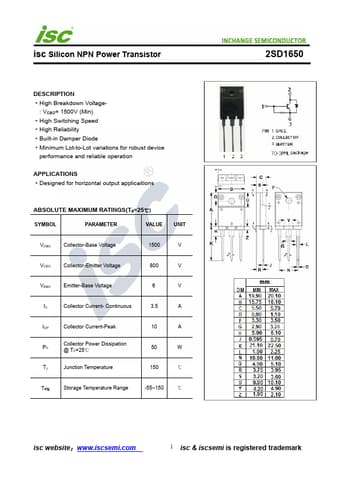

Preview of 2SD1650 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1650
Manufacturer
INCHANGE
File Size
210.67 KB
Datasheet
2SD1650-INCHANGE.pdf
Description
NPN Transistor
