2SD1656, Power Transistor

isc Silicon NPN Power Transistor .
High Breakdown Voltage- : VCBO= 1500V (Min). High Switching Speed. High Reliability. Minimum Lot-to-Lot variations for robust device.

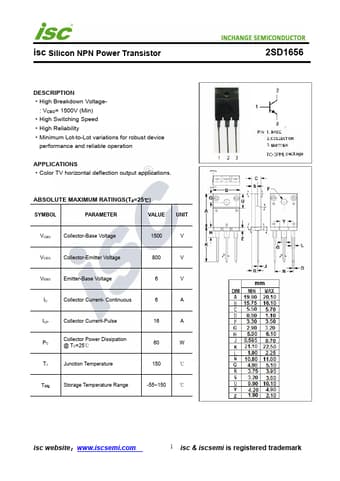

datasheet Preview Page 1 from Datasheet4u.com

2SD1656_InchangeSemiconductor.pdf

2SD1656 Datasheet Preview — Preview of 2SD1656 PDF

Datasheet Details

Part number:

2SD1656

Manufacturer:

Inchange Semiconductor

File Size:

215.75 KB

Description:

Power Transistor

Applications

* Color TV horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current- Continuous 6 A ICP Collector Curren
