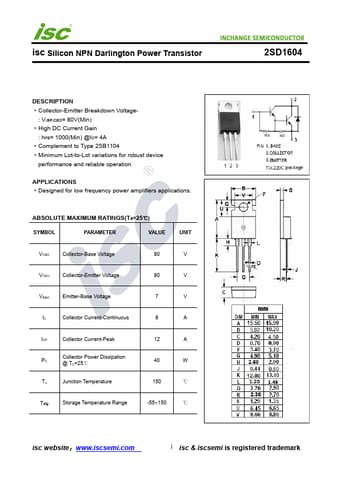

2SD1604 Datasheet, Transistor, Inchange Semiconductor

📥 Download PDF (211.14 KB)

PDF File Details

Inchange Semiconductor manufacturer logo

Part number:

2SD1604

Manufacturer:

Inchange Semiconductor

File Size:

211.14 KB

Download:

📄 Datasheet

Description:

Power transistor. *Collector-Emitter Breakdown Voltage- : V(BR)CEO= 80V(Min) *High DC Current Gain : hFE= 1000(Min) @IC= 4A *Complement to Type 2SB1104

✔ 2SD1604 Application

Designed for low frequency power amplifiers applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAME
