2SD1654 - NPN Transistor

2SD1654 Description

isc Silicon NPN Power Transistor .
High Breakdown Voltage- : VCBO= 1500V (Min). High Switching Speed. High Reliability. Minimum Lot-to-Lot variations for robust device.

2SD1654 Applications

* Color TV horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current- Continuous 3.5 A ICP Collector Curr

📥 Download Datasheet

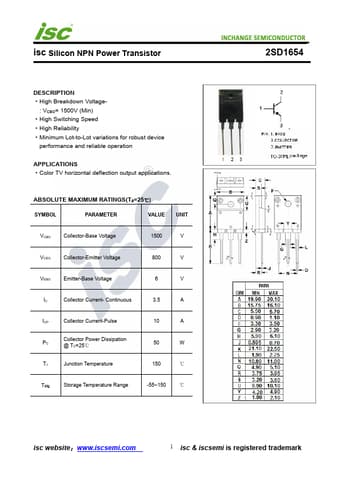

Preview of 2SD1654 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1654
Manufacturer
INCHANGE
File Size
211.96 KB
Datasheet
2SD1654-INCHANGE.pdf
Description
NPN Transistor
