2SK3569 - N-Channel MOSFET

2SK3569 Description

isc N-Channel MOSFET Transistor .
Drain Current ID= 10A@ TC=25℃. Drain Source Voltage- : VDSS= 600V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations for robus.

2SK3569 Applications

* Switching Regulators
* DC-DC Converter,
* Motor Control ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 10 A ID(puls) Pulsed Drain Current 40 A Ptot To

📥 Download Datasheet

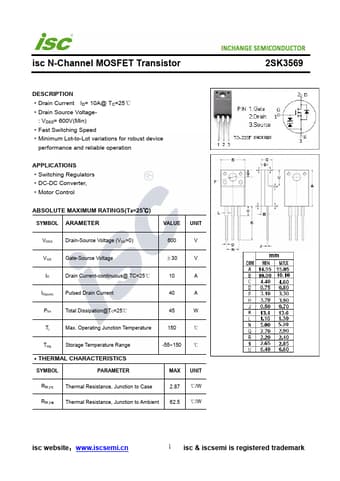

Preview of 2SK3569 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK3569
Manufacturer
INCHANGE
File Size
210.75 KB
Datasheet
2SK3569-INCHANGE.pdf
Description
N-Channel MOSFET
