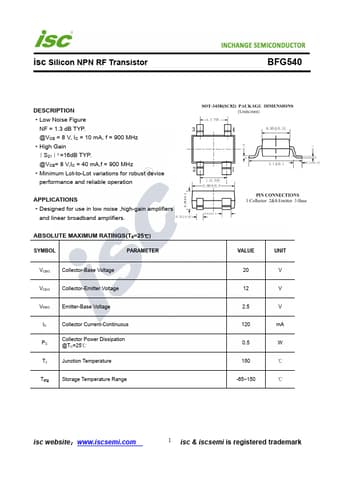

BFG540 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

BFG540

Manufacturer:

INCHANGE

File Size:

205.40kb

Download:

📄 Datasheet

Description:

Sot-343r npn transistor.

Low Noise Figure NF = 1.3 dB TYP. @VCE = 8 V, IC = 10 mA, f = 900 MHz

High Gain ︱S21︱2 =16dB TYP. @VCE= 8 V,IC = 40

BFG540 Application

• Applications
• Designed for use in low noise ,high-gain amplifiers and linear broadband amplifiers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL
