IXTH62N65X2 Datasheet - INCHANGE

IXTH62N65X2, N-Channel MOSFET

isc N-Channel MOSFET Transistor *.

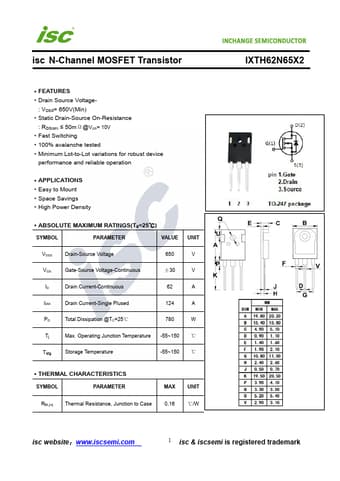

datasheet Preview Page 1 from Datasheet4u.com

IXTH62N65X2-INCHANGE.pdf

IXTH62N65X2 Datasheet Preview — Preview of IXTH62N65X2 PDF

Datasheet Details

Part number:

IXTH62N65X2

Manufacturer:

INCHANGE

File Size:

332.84 KB

Description:

N-Channel MOSFET

Features

* Drain Source Voltage- : VDSS= 650V(Min)
* Static Drain-Source On-Resistance : RDS(on) ≤ 50mΩ@VGS= 10V
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Easy to Mount
* Space Savings
* High Power Density
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 62 A IDM Drain Current-Single Plused 124 A PD To
