IXTH67N10 N-Channel MOSFET

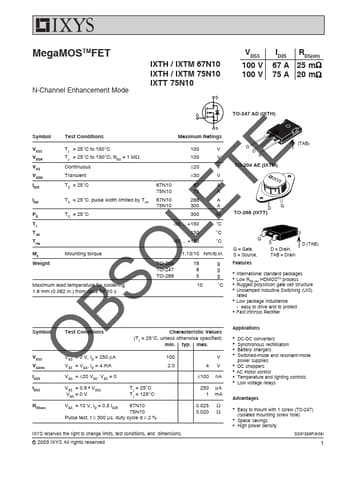

MegaMOSTMFET N-Channel Enhancement Mode IXTH / IXTM 67N10 IXTH / IXTM 75N10 IXTT 75N10 VDSS 100 V 100 V ID25 67 A 75 A RDS(on) 25 mΩ 20 mΩ TO-247 AD (IXTH) Symbol Test Conditions Maximum Ratings VDSS VDGR E VGS VGSM ID25 T IDM PD E TJ TJM L Tstg Md Weight TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C Mounting torque O Maximum lead temperature for soldering S 1.6 mm (0.062 in.) from case for 10 s 100 V.

IXTH67N10 Features

* S D = Drain, TAB = Drain D (TAB) z International standard packages z Low RDS (on) HDMOSTM process z Rugged polysilicon gate cell structure z Unclamped Inductive Switching (UIS) rated z Low package inductance - easy to drive and to protect z Fast intrinsic Rectifier B Symbol Test Conditions O V

IXTH67N10 Datasheet (1.11 MB)
