IXTH68P20T Datasheet - IXYS

IXTH68P20T P-Channel Power MOSFET

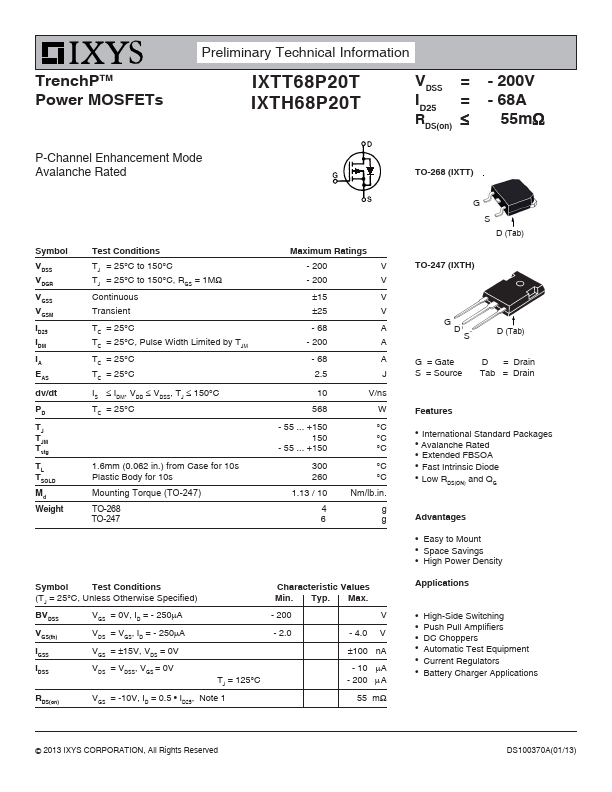

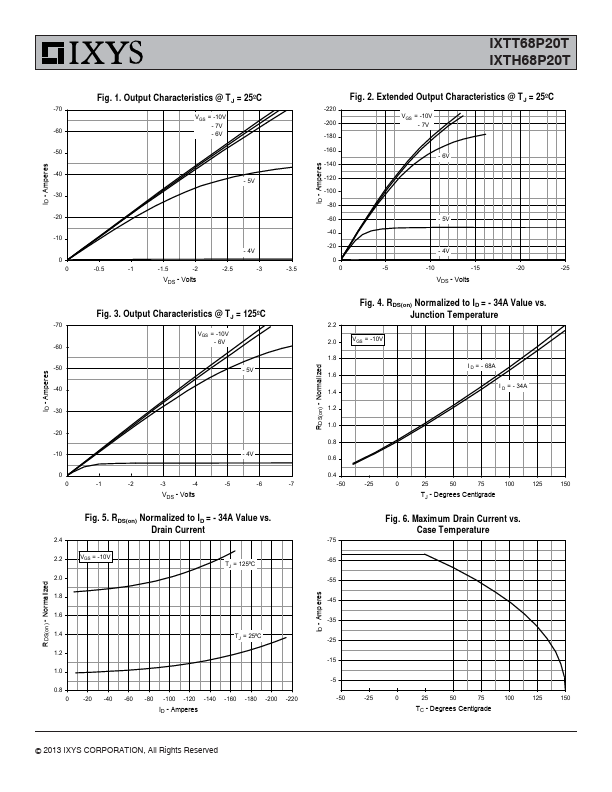

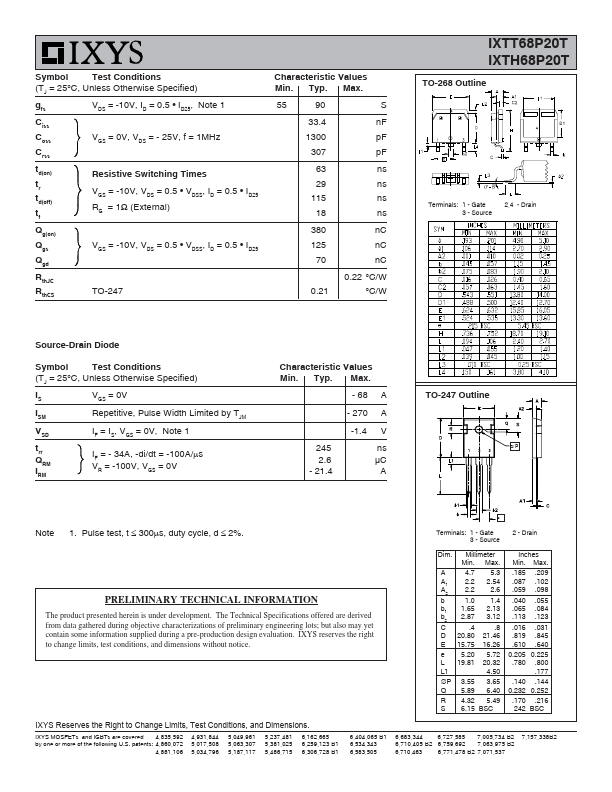

TrenchPTM Power MOSFETs Preliminary Technical Information IXTT68P20T IXTH68P20T VDSS = ID25 = ≤ RDS(on) - 200V - 68A 55mΩ P-Channel Enhancement Mode Avalanche Rated TO-268 (IXTT) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD M d Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C TC = 25°C 1.6mm (0.062 in.) from Case for .

IXTH68P20T Features

* z International Standard Packages z Avalanche Rated z Extended FBSOA z Fast Intrinsic Diode z Low RDS(ON) and QG Advantages z Easy to Mount z Space Savings z High Power Density Applications z High-Side Switching z Push Pull Amplifiers z DC Choppers z Automatic Test Equipment z Current Regulators z B
