STP100N10F7 TO-220 N-Channel MOSFET

STP100N10F7 Description

Isc N-Channel MOSFET Transistor STP100N10F7 *.

STP100N10F7 Features

* With To-220 package
* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP100N10F7 Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 100 V VGSS Gate-Source Voltage ±20 V ID Drain Current-Continuous@TC=25℃ TC=125℃ 80 62 A IDM Drain Current-Single Pulsed 320 A PD Total Dissipation @TC=25℃ 1

📥 Download Datasheet

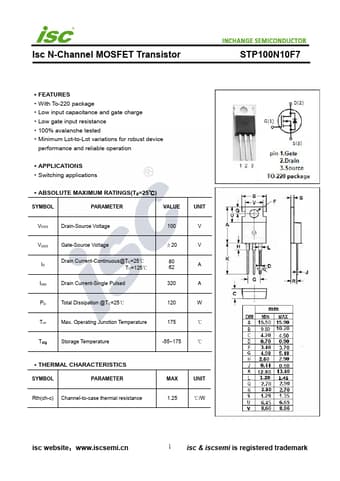

Preview of STP100N10F7 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP100N10F7
Manufacturer
INCHANGE
File Size
251.80 KB
Datasheet
STP100N10F7_INCHANGE.pdf
Description
TO-220 N-Channel MOSFET
